Description of Full Automatic YHZS35 portable concrete plant
YHZS35 portable concrete plant is a new type ready mix concrete plant, which put dosing, weighing, conveying, mixing, discharging and electric control system in one movable trailing unit. It is all the same as stationary batching plant to operate and maintain, at the same time, it can be overall mobile
YHZS35 portable concrete plant pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.
The YHZS35 portable concrete plant developed by haomei machinery Institute is computer-controlled and can be operated either automatically or manually. The operation is simple and easy to master. The dynamic panel display can clearly understand the operation of each component, and can store and print report data at the same time, which provides great convenience for production scheduling management. The main electrical components of the agitation machine reducer, metering sensor, and control system all use imported components, which not only greatly reduces the failure rate of the equipment, but also improves the metering accuracy of the equipment.
The Parameters of YHZS35 portable concrete plant
Item |
YHZS35(2.8m) |
|
Mixer |
JS750 |
|
Productivity |
35m3/h |
|
Aggregate hopper |
4*5m3 |
|
Grain size |
≤80mm |
|
Discharge height |
2.8m |
|
Total weight |
20T |
|
Total power |
55kw |
|
Weighing accuracy |
Aggregate |
2000kg±2% |
Powder |
300kg±1% |
|
Water |
250kg±1% |
|
Additive |
20kg±1% |
|
Dimension |
14.1mx2.2mx3.9m(Moving)13.2mx3.3mx6.7m(Working) |
|
Speed |
15km/h |
|
Voltage specification |
380v/50Hz (as request) |

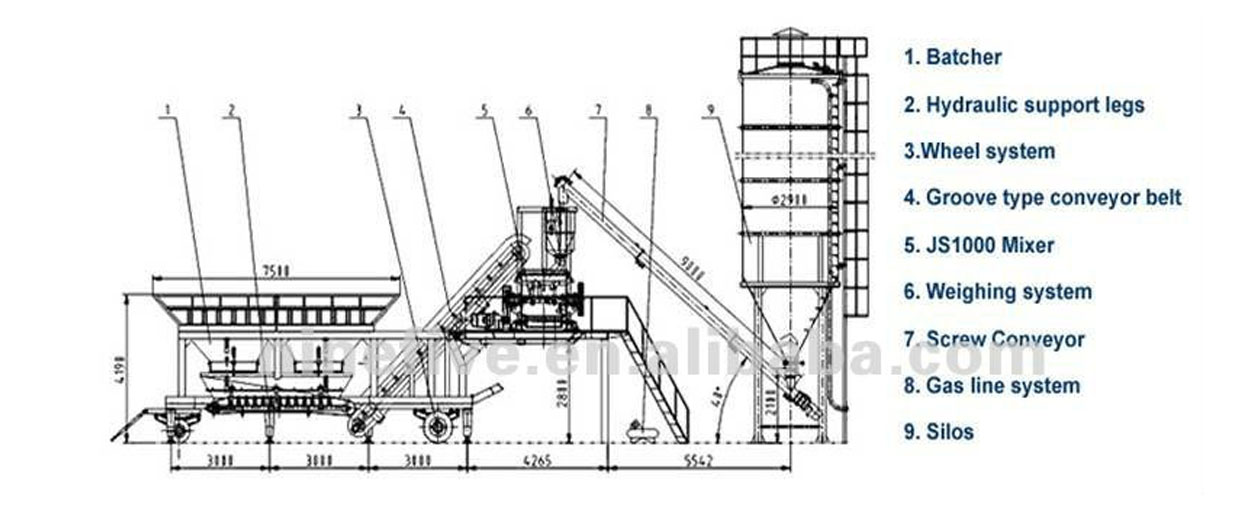

YHZS35 portable concrete plant layout
Mixing system
YHZS35 portable concrete plant mixing host uses JS750 concrete mixer. The mixing system of JS750 concrete mixer is composed of motor, pulley, reduction gear box, gear, stirring device and mixing drum. The main motor is connected to the secondary gear reduction box through a belt, and finally the two horizontally-disconnected stirring shafts are respectively driven by the two pairs of open gears to rotate in the opposite direction and at the same speed.
Batching system
YHZS35 portable concrete plant uses PLD1200 concrete batching machine, which adopts sand and gravel dosing device loaded by loader or belt conveyor, can be equipped with two to four different materials, can be used with various types of mixers and other metering devices, and can be combined into a fully automatic and semi-automatic mixing plant.
Conveyor system
YHZS35 portable concrete plant belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long conveying distance, large volume and continuous conveying, and it is reliable in operation, easy to realize automation and centralized control, and easy to disassemble.
Control System
The YHZS35 mportable concrete plant belt conveying frame is a truss structural member connecting the main chassis and the aggregate ingredient frame, and the belt frame is built in; the main frame, the belt frame and the batching frame are integrated to form the main structure of the entire mobile mixing station.
