HZS75 concrete plant
HZS75 series concrete plant (concrete mixing plants) belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
The theoretical productivity of the HZS75 concrete plant is 75m3/h, the power of the mixing machine is 60KW, the nominal capacity of the mixer is 1500L, the number of bins in the batching machine is 4 cells, the batching capacity is 2400L, 3×100t, and the capacity and capacity of the powder silo capacity are measured. (0 ~ 1500) ± 1% kg, the range and accuracy of admixture weighing (0 ~ 50) ± 1% kg, the accuracy of aggregate weighing ± 2%, unloading height of 3.8 meters, the total installed power of 179.5KW To meet production needs. The central control will realize the fully automated and adopted electronic scale measurement function, with high measurement accuracy and small error. With screen display, ratio storage, automatic compensation for fall and other functions, and equipped with a manual system, can achieve manual and automatic control of the mixing process. In addition, the device is also equipped with a printing system to achieve centralized control and overall management of the entire device.
The storage bin of the HZS75 concrete plant equipment is arranged in a “one” shape. The loader can load materials and can store three kinds of aggregate at the same time. The measured aggregate is conveyed to the main machine via flat belts and lifting systems. According to the user's needs, the powder batching system can be equipped with four powder silos, and the powdered materials are respectively sent from the respective screw conveyors to the corresponding powder weighing hoppers. Water and liquid additives are pumped into the corresponding liquid material weighing hopper.
Specifications
Specification |
Unit |
Value |
Productivity |
m3/h |
75 |
Capacity of Mixer |
m3 |
1.5 |
Mixer Power |
kw |
44 |
Discharge Height |
m |
3.8(for customers choice) |
Aggregate Bin |
Quantity |
3 |
Aggregate Bin Capacity |
m3 |
2.4 |
Max. Weighing Value of aggregate |
kg |
6000 |
Max. Weighing Value of cement |
kg |
1000 |
Max. Weighing Value of water |
kg |
500 |
Max. Weighing Value of additive |
kg |
50 |
Aggregate Measuring Accuracy |
% |
2 |
Water Measuring Accuracy |
% |
1 |
Cement Measuring Accuracy |
% |
1 |
Additive Measuring Accuracy |
% |
1 |
Cement Silo |
_ |
Optional |
Cement Screw Conveyor |
_ |
Optional |
Cement Silo Capicity |
_ |
Optional |
Control Mode |
_ |
Auto/Semi control |
The Introduction of HZS75 Concrete Plant Components:

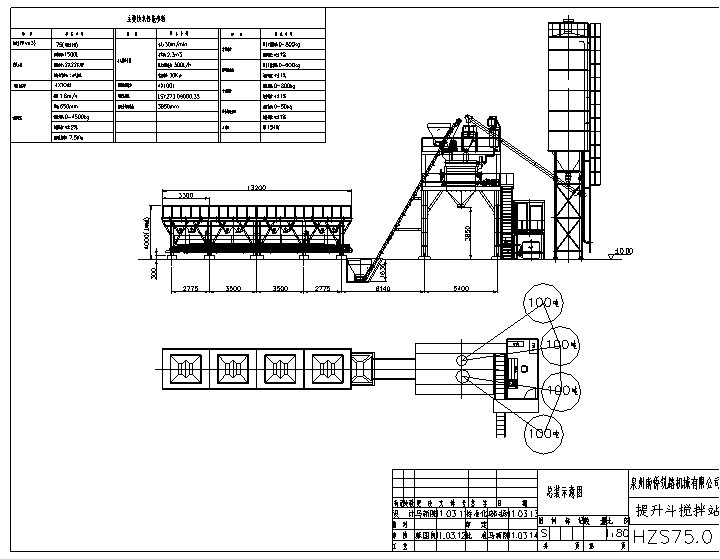

concrete batching plant layout
1). Aggregate Batching Machine
1. Adopts modular structure, easy to install and assembly and convenient to transport.
2. The mixing console adopts JS1000 twin shaft compulsory concrete mixer.
3. Measurement of components and control components are importing from USA, Japan, Germany.
4. Computer control system can keep the accuracy and stable measurement performance.
2. JS1500 Concrete Mixer
1. JS series concrete mixer with twin shaft compulsory concrete mixer2. Not only work independently, also can work with PLD series aggregate batcher to make a simple concrete plant or adopted as the mixer in the high-end concrete batching plant.
3). Cement Silo
1. Cement silo is suitable for bulk cement and dry fly ash, grain and waterproof.
2. Cement silo is cylinder and supporting structure.
3. Cement silo generally adopts bulk cement conveying concrete truck to delivery the powder into the bin by pneumatic conveying.
About HZS75 concrete plant knowledge
- 1 The capacity of the concrete plant is theoretical productivity, and the actual capacity may be less than the theoretical value.
- 2. The floor space refers to the footprint of the main body of the concrete batching plant. It does not include the floor space of the aggregate yard, living area, laboratory and other functional areas. The concrete plant of the same type may adopt different structural forms according to the needs of users. The footprint and standard footprint are different.
- 3. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual needs.
