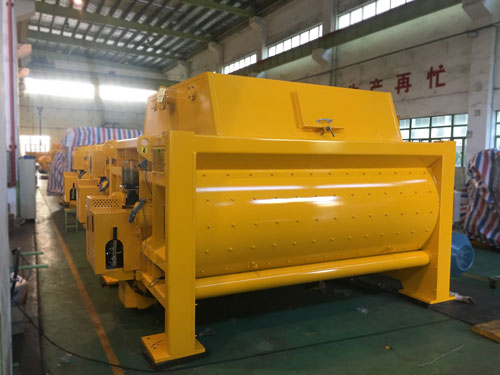

Sicoma 4000 concrete mixer
Sicoma 4000 concrete mixer also known as SICOMA 4.0 Double Shaft Concrete Mixer. It is mainly used to mix powder and granular inertia materials. As one type of 2019 hot sale SICOMA twin shaft concrete mixer, SICOMA twin shaft concrete mixer is widely used for mixing commercial concrete, premixed concrete, and precast concrete, etc. With much higher performance than other mixers, SICOMA twin shaft concrete mixer is suitable for all large-and middle-sized concrete projects.
The SICOMA4.0 Concrete Mixer Configuration:
1. Powerful compulsory spiral mixing action throws particles from each side of the mixer towards the center, where they combine;
2. The water is forced through powerful jets into the mix, where it is absorbed completely, allowing the cement slurry to coat all the aggregate particles uniformly, forming the strongest concrete.
3. Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.
4. Unique monitoring system to monitor the running conditions of gearbox.
5. Automatic multi pump units for shaft lubrication, special pump pin unit design.
The Parameters of Sicoma 4000 concrete mixer:
Specification |
Unit |
Value |
Discharging Volume |
L |
4000 |
Charging Volume |
L |
6000 |
Mixer Capacity |
m3 |
4.0 |
Lubrication System |
Brand |
Choosed |
Reducer |
Brand |
BONFIGLIOLI |
Aggregate Size |
mm |
60/80 |
Aggregate Compartments |
Quantity |
4 |
Working Circle |
S |
60S |
Mixer Motor Power |
KW |
2x75 |
Mixing Speed |
r/min |
31.5 |
Mixing Blade |
Quantity |
2x11 |
Lifting Motor Power |
KW |
28 |
Pump Motor Power |
KW |
3 |
Weight |
KG |
11800 |
Dimensions |
mm |
2680x4435x2175 |
Sicoma concrete mixer parts
The Features of SICOMA4.0 Concrete Mixer
1. Air purged multi seals to enhance bearing life and effectively avoid slurry leakage.
2. Unique monitoring system to monitor the running conditions of gearbox, hydraulic door opening and lubrication pump.
3. Automatic multi pump units for shaft lubrication, special pump pin unit design.
4. No more grease distributor maintenance trouble.
5. Multi pipes water spraying system to ensure fast and thorough mixing.
6. Optional weighing system, high pressure cleaning system and microwave moisture monitoring system.
7. Heavy duty design, stable operation.
8. Dam work models for oversize aggregated maximum size 180mm, equipped with wearable linings 20mm thickness and high strength blades.
If you still have questions about the different concrete mixer types or for more information, please contact us.E-mail: wade@haomei.biz
