Sicoma 3000 concrete mixer

Sicoma 3000 concrete mixer

Sicoma 3000 concrete mixer also known as SICOMA 3.0 Double Shaft Concrete Mixer. It is mainly used to mix powder and granular inertia materials. As one type of 2019 hot sale SICOMA twin shaft concrete mixer, SICOMA twin shaft concrete mixer is widely used for mixing commercial concrete, premixed concrete, and precast concrete, etc. With much higher performance than other mixers, SICOMA twin shaft concrete mixer is suitable for all large-and middle-sized concrete projects.

The SICOMA3.0 Concrete Mixer Configuration:

1. Mixing device: unique design and the mixing time is short, and high efficiency.
2. The shaft seal: double floating seal ring and a special high-pressure seals
3. Mixing shaft: steel mixing shaft, higher torsional and flexural strength.
4. Automatic grease: progressive distributor lubrication, oil pressure, viscosity, low fuel consumption and less pollution.
5. A hydraulic unloading device: the discharge door half open angle adjusted manually.
6. The high-pressure pump: automatic high pressure cleaning system and cleaning time is shorter and better.
7. Temperature Humidity Tester: highly accurate dynamic material temperature, humidity measurements, providing the most accurate material mixing process moisture content and temperature measurements

The Parameters of Sicoma 3000 concrete mixer:

Specification

Unit

Value

Discharging Volume

L

3000

Charging Volume

L

4500

Mixer Capacity

m3

3.0

Lubrication System

Brand

Choosed

Reducer

Brand

BONFIGLIOLI

Aggregate Size

mm

60/80

Aggregate Compartments

Quantity

4

Working Circle

S

60S

Mixer Motor Power

KW

2x55

Mixing Speed

r/min

33.5

Mixing Blade

Quantity

2x9

Lifting Motor Power

KW

25

Pump Motor Power

KW

3

Weight

KG

9200

Dimensions

mm

2680x3830x2175

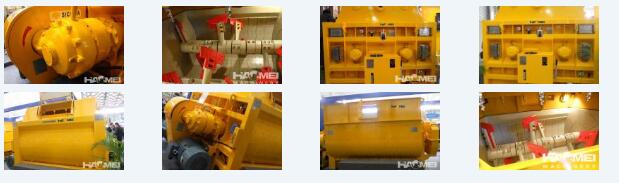

Sicoma concrete mixer parts

Sicoma 3000 concrete mixer parts

The Features of SICOMA3.0 Concrete Mixer

11. Unique monitoring system to monitor the running conditions of gearbox
2. Automatic multi pump units for shaft lubrication
3. Multi pipes water spraying system to ensure fast and thorough mixing.
4. Optional weighing system, high pressure cleaning system

If you still have questions about the different concrete mixer types or for more information, please contact us.E-mail: wade@haomei.biz
