concrete pump truck

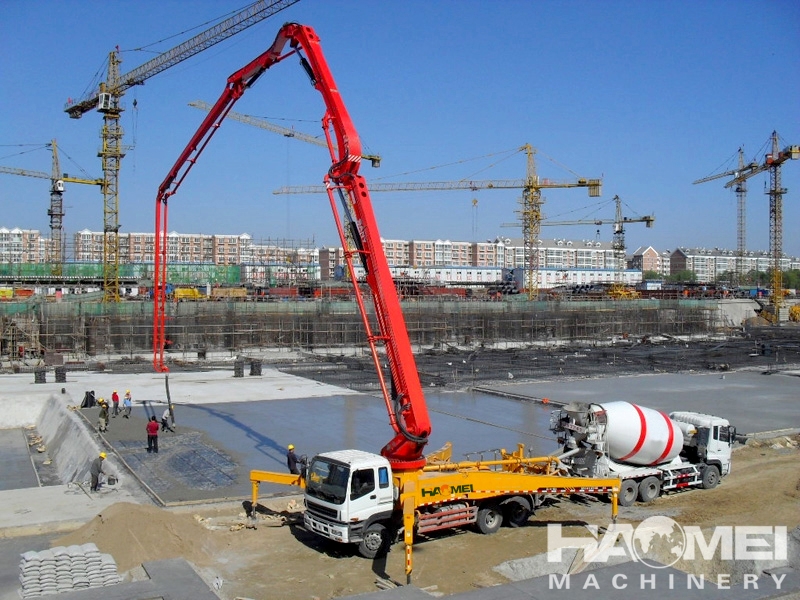

A concrete pump truck also known as a Concrete Boom Pump or Truck mounted concrete pump . concrete pump is attached to a truck or longer units are on semi-trailers. it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately. Boom pumps are used on most of the larger construction projects as they are capable of pumping at very high volumes and because of the labour saving nature of the placing boom. truck-mounted concrete pumps cover a wide range of boom length from 38-62m.

Performance features Of concrete pump truck
.1, The good stability, concrete pump truck uses X leg for the front leg, the rear leg adopts an expansion leg, and every pump truck through hanging weight simulation actual mining level straight rotated 365 degrees, absolutely no overturned happened.
2, The strong adaptability to construction operation, wide scope of operation, the conveying pipe can be laid to other hard-to-reach places.
3, The high mechanization degree, less labor needed, simple construction organization. High compressive strength, suitable for structural materials.
4, Adopt the Siemens computer control, with functions of automatic lifting speed, the engine speed closed-loop control, especially save fuel cost when pumping concrete efficient, average fuel consumption of 0.5 l/m3. And other enterprises adopt relay control with high fuel consumption.
5, The construction efficiency of concrete pump truck is high, the work progress is fast, and good work-ability together with the steel. Thermal expansion coefficient of concrete IS similar to steel, mechanical characteristics can complement each other, and cohesive force is strong with reinforced, can be made of reinforced concrete, expand the range of application.
6, Adopted imported electric proportional multi-way valve and remote control, arm can not shake when fixed-point control, and other enterprises adopt domestic switch multi-way valve control, boom shake violently. The stability of the boom control is worse than Haomei. And Haomei's boom pump truck adopt plunger pump, high pressure oil cylinder pressure, and other enterprises to adopt is a gear pump.
Specifications
name | unit | HDT5350THB-42/4 | HDT5401THB-45/5 | HDT5401THB-48/5 | HDT5420THB-52/5 | HDT5291THB-37/4 | HDT5291THB-39/4 |
output in theory | m3/h | 125 | 125 | 125 | 125 | 125 | 125 |
index of the pump carry capacity | Mpa.m3/h | 586 | 586 | 586 | 586 | 586 | 586 |
Theoretic pumping pressure | Mpa | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
bucket volume | L | 700 | 700 | 700 | 700 | 700 | 700 |
height of top surface of bucket | mm | 1400 | 1400 | 1400 | 1400 | 1370 | 1370 |
model of distribution valve | S Valve | S Valve | S Valve | S Valve | S Valve | S Valve | |
max. operation radius | m | 38 | 40.7 | 43.7 | 47.8 | 32.6 | 34.7 |
max. operation height | m | 41.8 | 44.7 | 47.7 | 51.8 | 36.6 | 38.7 |
max. operation depth | m | 29 | 31.3 | 34.3 | 39.8 | 25.5 | 27 |
open height of boom | mm | 8600 | 8495 | 9065 | 9400 | 8450 | 8830 |
distance between front landing legs | mm | 8820 | 9550 | 9780 | 10295 | 7058 | 6800 |
distance between rear landing legs | mm | 8500 | 9550 | 9860 | 10650 | 6848 | 7000 |
distance between front & rear landing legs | mm | 8490 | 9190 | 9470 | 10310 | 6790 | 7432 |
diameter of delivery pipe | mm | 125 | 125 | 125 | 125 | 125 | 125 |
length of hose pipe | m | 3 | 3 | 3 | 3 | 4 | 4 |
rotary range of boom | 365° | 365° | 365° | 365° | 365° | 365° | |
quantity of boom | 4 | 5 | 5 | 5 | 4 | 4 | |
rotary angle of each boom | ° | 92/180/180/240 | 91/180/180/180/270 | 91/180/180/180/270 | 90/180/180/180/270 | 92/180/180/270 | 91/180/180/180/270 |
wire line control distance | m | 33 | 33 | 33 | 33 | 33 | 33 |
romote control distance | m | 200 | 200 | 200 | 200 | 200 | 200 |
max. speed | km/h | 85 | 80 | 85 | 80 | 90 | 90 |
min. turn radius | mm | 12100 | 12100 | 12000 | 12500 | 8800 | 8800 |
brake distance | m | 10 | 10 | 10 | 10 | 7 | 7 |
approach angle | ° | 16 | 16 | 16 | 16 | 16 | 16 |
departure angle | ° | 11 | 11 | 11 | 11 | 11 | 11 |
chassis model | HOWO ZZ5437S4667C | HOWO ZZ5437S4667C | HOWO ZZ5437S4667C(HOWO Engine) | HOWO ZZ5437S5067C1(HOWO Engine) | HOWO ZZ5307N4647C | HOWO ZZ5307N4647C | |
wheel base between the first & the second axle | mm | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
wheel base between the second & the third axle | mm | 4600 | 4600 | 4600 | 5000 | 4600 | 4600 |
wheel base between the third & the fourth axle | mm | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
front tread | mm | 2022 | 2022 | 2022 | 2022 | 2022 | 2022 |
rear tread | mm | 1830 | 1830 | 1830 | 1830 | 1830 | 1830 |
max. engine output power | kw | 275(2200r/min) | 275(2200r/min) | 275(2200r/min) | 275(2200r/min) | 247(2200r/min) | 247(2200r/min) |
max. engine output torque | n.m | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1350(1100-1600r/min) | 1350(1100-1600r/min) |
max, gradient ability | % | 37 | 35 | 37 | 37 | 35 | 35 |
fuel consumption | L/100km | 38 | 40 | 40 | 40 | 34 | 34 |
(××)out dimension(L×W×H) | mm | 13650×2490×3960 | 13300×2500×4000 | 13300×2500×4000 | 13990×2500×4000 | 12000×2490×3850 | 12500×2490×3950 |
total weight | kg | 35000 | 40000 | 40000 | 42000 | 29000 | 29500 |
