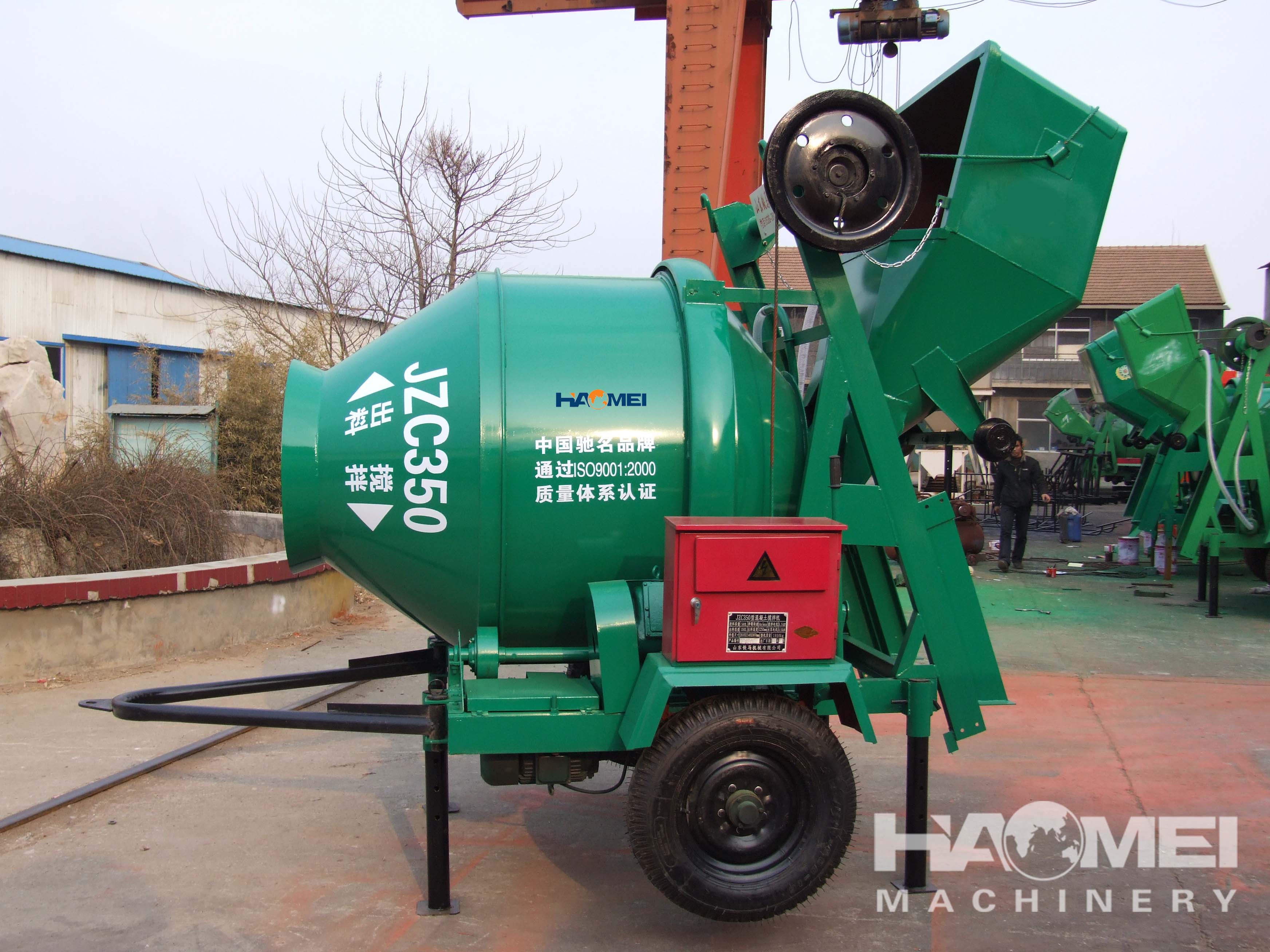

JZC350 Drum concrete mixer
JZC350 drum concrete mixers are self falling type concrete mixing machine, are also known as gear type concrete mixer. JZC concrete mixer is used in simple construction projects, such as building, bridge, and small ready-mix concrete plant
JZC350 Diesel Engine Powered Concrete Mixer with Hydraulic Tipping Hopper is a mixer of double conical drums which discharges concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate that ups to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharging is performed when the mixing drum rotates in reversed direction. The mixing drum can handle 0.35 cubic meters of concrete for each
JZC series mixers are an auto unloading material cement mixer. While working, when it is working as clockwise, it is mixing, anti-clockwise it is unloading material. It can mix plasticity and semi-dry hard concrete. The mixing drum is drived by gear ring, its has many advantages such as steady running condition, easily operation, good quality of mixing and high capacity,running steady, operating easily, and good quality of mixing.
JZC series jzc towable concrete mixer could turn to be mobile types with wheels equipped. .
The Parameters of JZC350 Drum concrete mixer:
Specification |
Unit |
Value |
Discharging Volume |
L |
350 |
Charging Volume |
L |
560 |
Mixer Capacity |
m3 |
0.35 |
Lubrication System |
Brand |
Choosed |
Reducer |
Brand |
Choosed |
Aggregate Size |
mm |
60/80 |
Aggregate Compartments |
Quantity |
4 |
Working Circle |
S |
72 |
Mixer Motor Power |
KW |
5.5 |
Mixing Speed |
r/min |
14 |
Weight |
KG |
1950 |
Dimensions |
mm |
2766x2140x3000 |
About JZC350 concrete mixer
