JS500 concrete mixer
JS500 concrete mixer is a kind of small but compulsory twin shaft horizontal forced type Concrete mixer.it is a high-efficiency Concrete Mixing Tools with wide application.with the capacity of 25m³ per hour（that is 0.5m³ per batch), has the features of consistent mixing results, high efficiency, low energy consumption and low noise. JS500 concrete mixer adopts the latest mixing technology so as to it can meet the requirements for mixing various concrete such as dry-hard concrete, plastic concrete, mortar, light aggregate and so on. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for HZS25 concrete batching plant.It is the ideal concrete mixing equipment for medium and small sized building, bridges, highways projects or simple concrete plant.
Specifications
| Specification | Unit | Value |
Discharging Volume |
L |
500 |
Charging Volume |
L |
800 |
Mixer Capacity |
m3 |
0.5 |
Lubrication System |
Brand |
Choosed |
Reducer |
Brand |
Choosed |
Aggregate Size |
mm |
60/80 |
Aggregate Compartments |
Quantity |
4 |
Working Circle |
S |
60S |
Mixer Motor Power |
KW |
18.5 |
Mixing Speed |
r/min |
35 |
Mixing Blade |
Quantity |
2x7 |
Lifting Motor Power |
KW |
5.5 |
Pump Motor Power |
KW |
0.75 |
Weight |
KG |
1500 |
Dimensions |
mm |
3030x2300x2680 |
Sketch Map of Twin shaft Concrete Mixer
Leg height design: 1500mm-4600mm; the total power: 25.1KW; the mixing tank capacity: 800L; discharged capacity: standard 0.5 cubic meter concrete per batch; working cycle: 72S. The 6 cubic meter concrete mixer truck can complete stirring within 12 minutes.
Technical Details:
1) Hydraulic discharge，Manual discharging for options, the hydraulic discharging door angle is adjustable.
2) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades.
3) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
4) Motor and speed reducer are of china famous brand. Full Copper Motors, Stable and Long Life.
5) National Standard Steel From China Famous Steel & Iron Companies.
6) Discharge height 1.5m，3.8m optional.The customer can use the mixer combined with tip lorry, dump truck, and mixer truck.
7) China Well-known Trademark, ISO SGS.

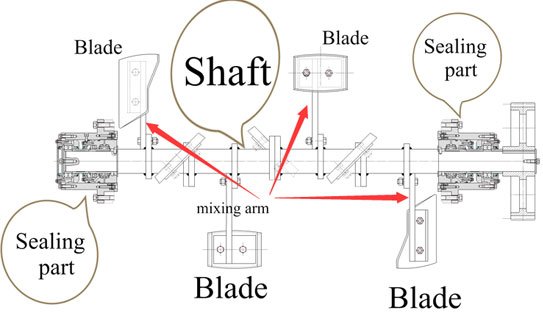

JS500 concrete mixer parts
Introduction
Haomei JS500 concrete mixer, Twin shaft Concrete Mixer is the second generation of the compulsory horizontal type concrete mixer. It is manufactured by haomei Machinery combining with advanced technologies at home and abroad.The machine is a classic twin shaft concrete mixer meeting the requirements of medium to high concrete output. It is excellent in energy efficiency and time saving. The technology of separating the shaft bearings from the shaft sealing makes the sealing is easily accessible for maintenance. Moreover, except for hydraulic control system for discharge electrically or manually, it adds pneumatic device.Thanks to its design, JS concrete mixer is extremely reliable and reflects the state of the art. What`s more, it is high quality with competitive price. If you still have questions about the different concrete mixer types or for more information, please contact us.E-mail: wade@haomei.biz
