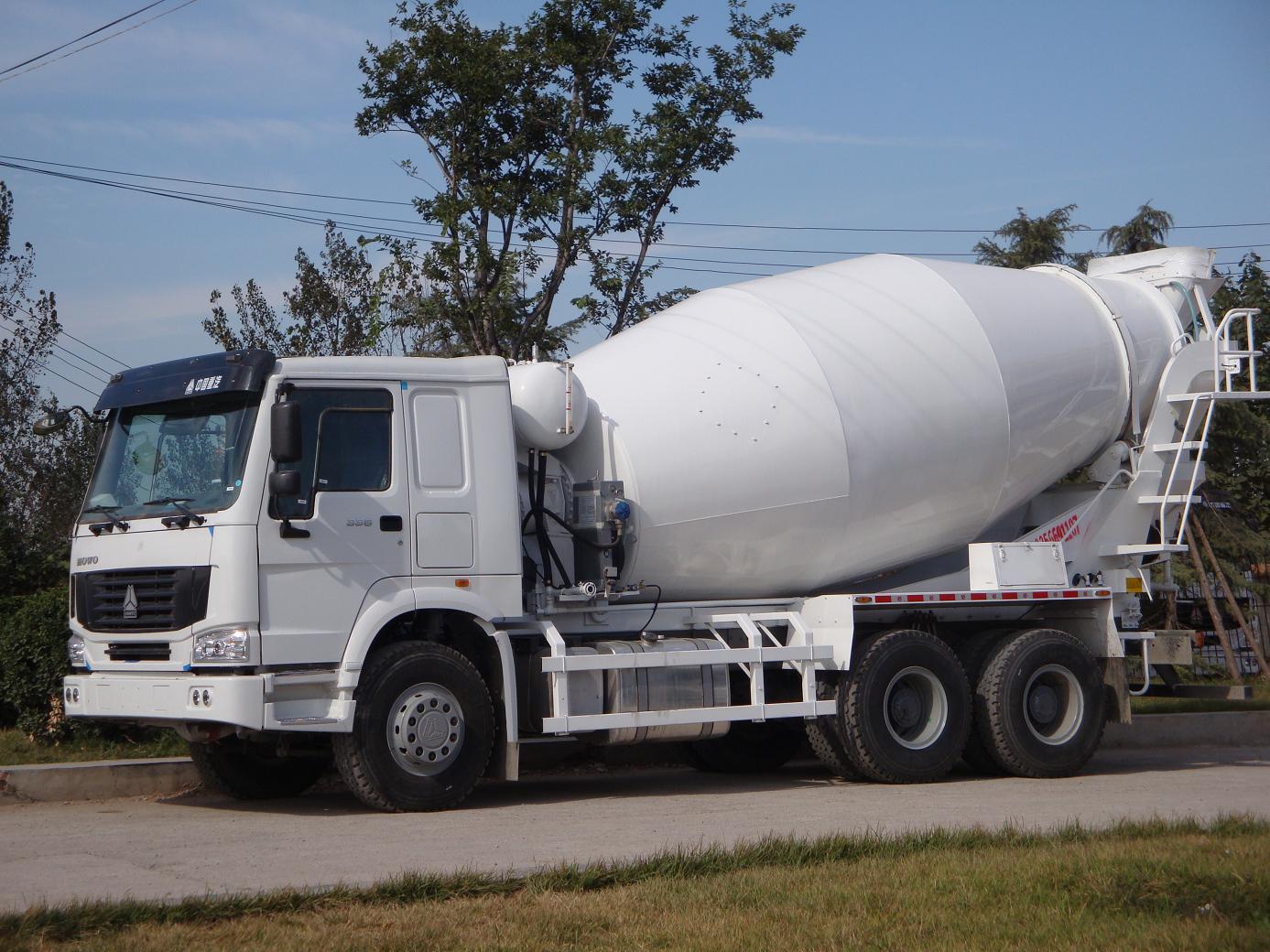

HM12-D cement mixer truck
HM12-D cement mixer truck with 12 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 12 cubic meter concrete mixer truck can adapt to varied harsh conditions and improves its service life.
The Description of HM12-D Concrete Truck Mixer:
Power, economy and reliability of a variety of strong chassis, to meet the construction site in the harsh road conditions.
1. High-performance mixing system: Simplified three segments is pear-shaped and its main blade according to spiral toward the cylinder which is designed to vary in different sections of the helix angle, pitch angle and lead angle up and remove the blade stirring blades and the cylinder walls at the corners and the connection of variable pitch.
2. The perfect washing system: Large capacity water tank and efficient way round pressure water cleaning.
3. Flexible control system: by type and mechanical shafts, main control reversing the mixing tube and speed of the mixing tube.
4. The strong power systems: closed loop, using all parts of the world-renowned brands.
The Features of HM12-D Concrete Truck Mixer
1. Concrete homogeneous good
2. The residual rate is far below the industry standard
3. Its simplified and blades made of high quality wear-resistant steel.
The HM12-D cement mixer truck also called 12m3 concrete mixer truck, 12 cubic meter concrete mixing truck, mixing concrete truck, concrete mix truck,cement mixing truck,etc.Our 6m3 concrete mixer truck is mainly used in cement mixing station, construction field. and other place.It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Specifications
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
12 |
Tank Volume |
m³ |
17.93 |
Feeding Speed |
m³/min |
≥3.5 |
Discharging Speed |
m³/min |
≥3 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
400 |
Overall Dimension |
mm |
9880*2496*3920 |
Chassis Model |
|
HOWO |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
245 |
Max Speed |
km/h |
86 |
Engine Max Output Power |
kw |
340 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
15000 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
4025+1350 |
As you can see, these different Concrete Mixer Truck types can create a range of different concrete mixer Truck in different time frames. Some are for very specific purposes while others cover a wider range of construction needs. If you still have questions about the different concrete mixer Truck types or for more information, please contact us.E-mail: wade@haomei.biz
